3/4 od x 1/8 inch thick with countersunk hole for No. 8 screw Ring Magnets | RC22CS-N

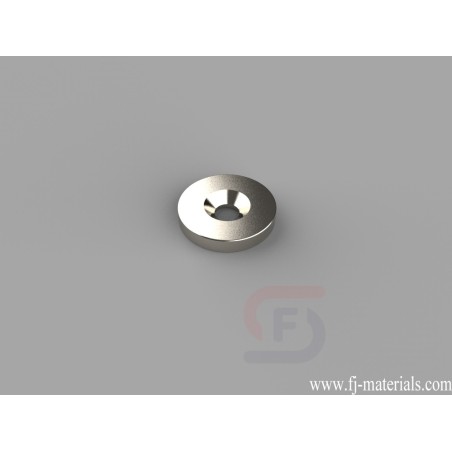

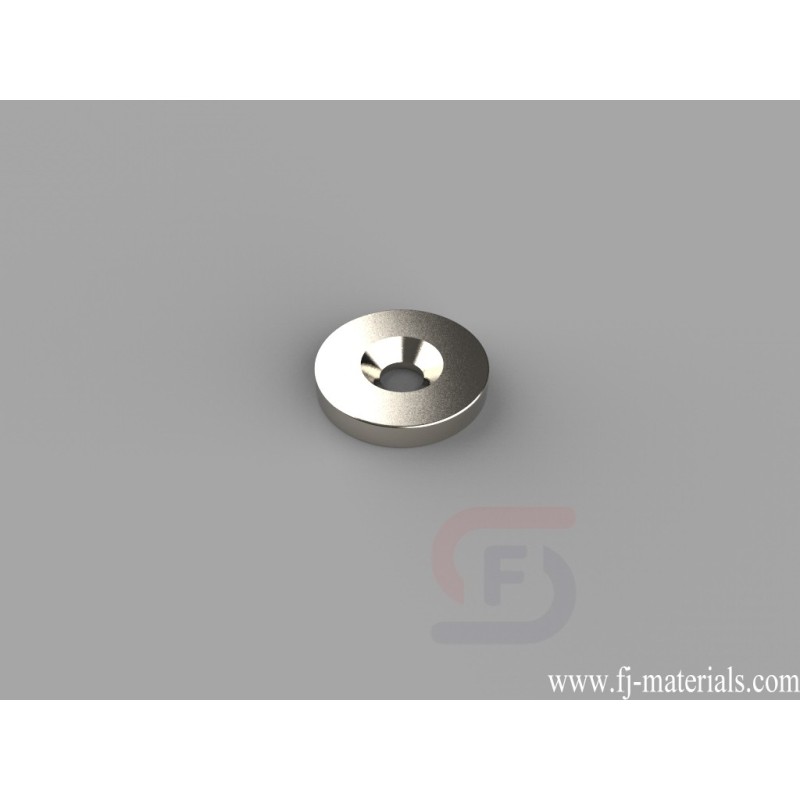

RC22CS-N Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 8.68 lbs.

Yiwu Fenjiao E-commerce Firm supply RC22CS-N Neodymium Ring Magnets with high quality at competitive price.

RC22CS-N Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 8.68 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RC22CS-N

Data sheet

Item Number
RC22CS-N
Material
NdFeB
Grade
N42
Size
3/4" od x 1/8" thick with countersunk hole for No. 8 screw
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.212 oz. (6.01 g)
Pull Force
8.68 lbs
Diameter
E. 12.7-19.05mm
Thickness
A. 0.00-3.18mm
Inner Diameter
A. 0.00-3.18mm
