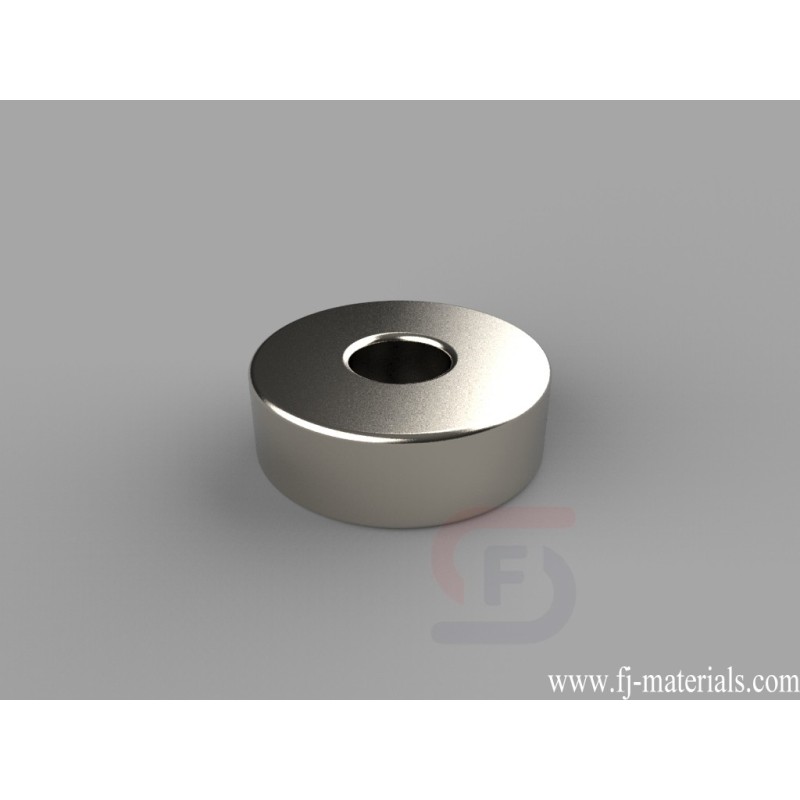

3/4 od x 1/4 id x 1/4 inch thick Ring Magnets | RC44
RC44 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 17.61 lbs.
Yiwu Fenjiao E-commerce Firm supply RC44 Neodymium Ring Magnets with high quality at competitive price.
RC44 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 17.61 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RC44
Data sheet
- Item Number
- RC44
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" od x 1/4" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.426 oz. (12.1 g)
- Pull Force
- 17.61 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- B. 3.18-6.35mm
RC44 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 17.61 lbs.
