3/4 od x 1/4 id x 1/2 inch thick Ring Magnets | RC48

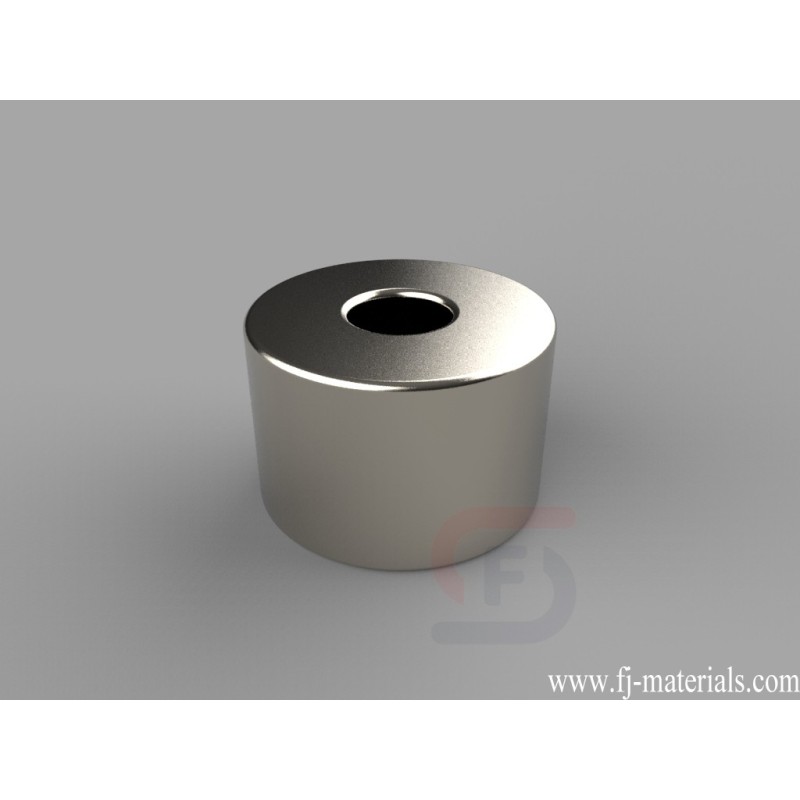

RC48 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/4" id x 1/2" thick, Axial magnetized. Pull force is approximately 25.88 lbs.
Yiwu Fenjiao E-commerce Firm supply RC48 Neodymium Ring Magnets with high quality at competitive price.
RC48 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/4" id x 1/2" thick, Axial magnetized. Pull force is approximately 25.88 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RC48
Data sheet
- Item Number
- RC48
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" od x 1/4" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.851 oz. (24.1 g)
- Pull Force
- 25.88 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- B. 3.18-6.35mm
RC48 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/4" id x 1/2" thick, Axial magnetized. Pull force is approximately 25.88 lbs.
