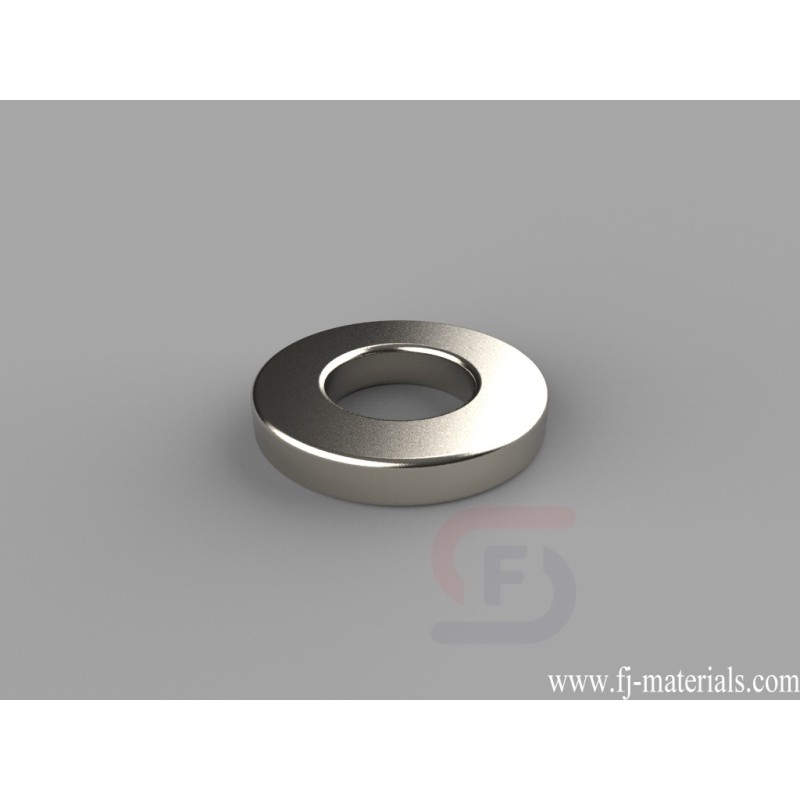

3/4 od x 3/8 id x 1/8 inch thick Ring Magnets | RC62
RC62 Neodymium Magnets, 3/4" od x 3/8" id x 1/8" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 3/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 8.51 lbs.
RC62 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 3/4" od x 3/8" id x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 8.51 lbs. Magnetization direction: Axial (Poles on Flat Ends)
RC62 Neodymium Magnets, 3/4" od x 3/8" id x 1/8" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 3/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 8.51 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RC62
Data sheet
- Item Number
- RC62
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" od x 3/8" id x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.233 oz. (6.6 g)
- Pull Force
- 8.51 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- C. 6.35-9.53mm
RC62 Neodymium Magnets, 3/4" od x 3/8" id x 1/8" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 3/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 8.51 lbs.
