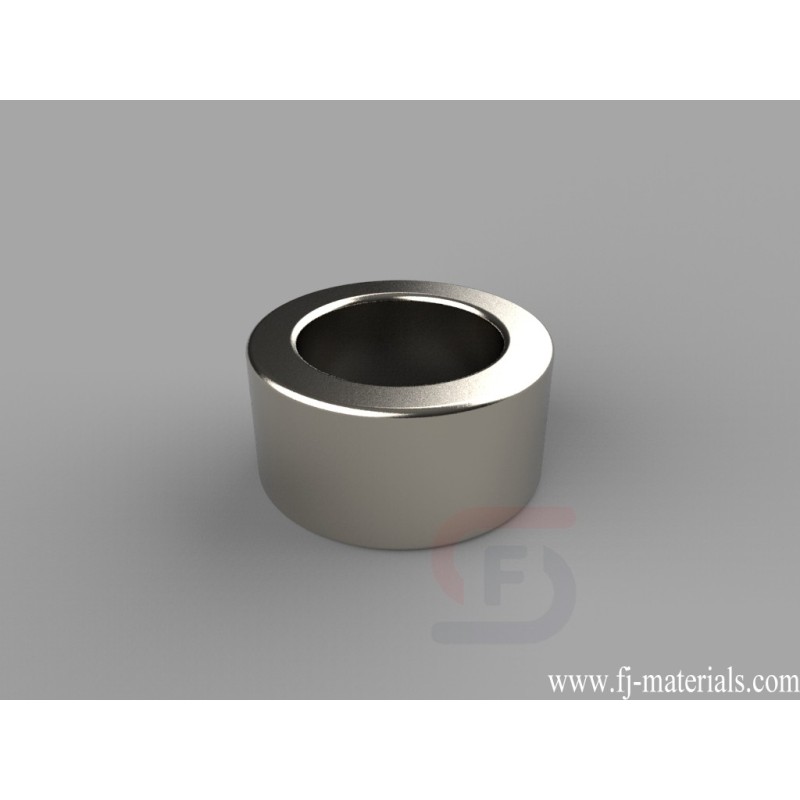

3/4 od x 1/2 id x 3/8 inch thick Ring Magnets | RC86
RC86 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/2" id x 3/8" thick, Axial magnetized. Pull force is approximately 16.30 lbs.
Yiwu Fenjiao E-commerce Firm supply RC86 Neodymium Ring Magnets with high quality at competitive price.
RC86 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/2" id x 3/8" thick, Axial magnetized. Pull force is approximately 16.30 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RC86
Data sheet
- Item Number
- RC86
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" od x 1/2" id x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.399 oz. (11.3 g)
- Pull Force
- 16.30 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- C. 6.35-9.53mm
- Inner Diameter
- D. 9.53-12.7mm
RC86 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/2" id x 3/8" thick, Axial magnetized. Pull force is approximately 16.30 lbs.
