7/8 od x 1/8 inch thick with countersunk hole for No. 8 screw Ring Magnets | RE22CS-P

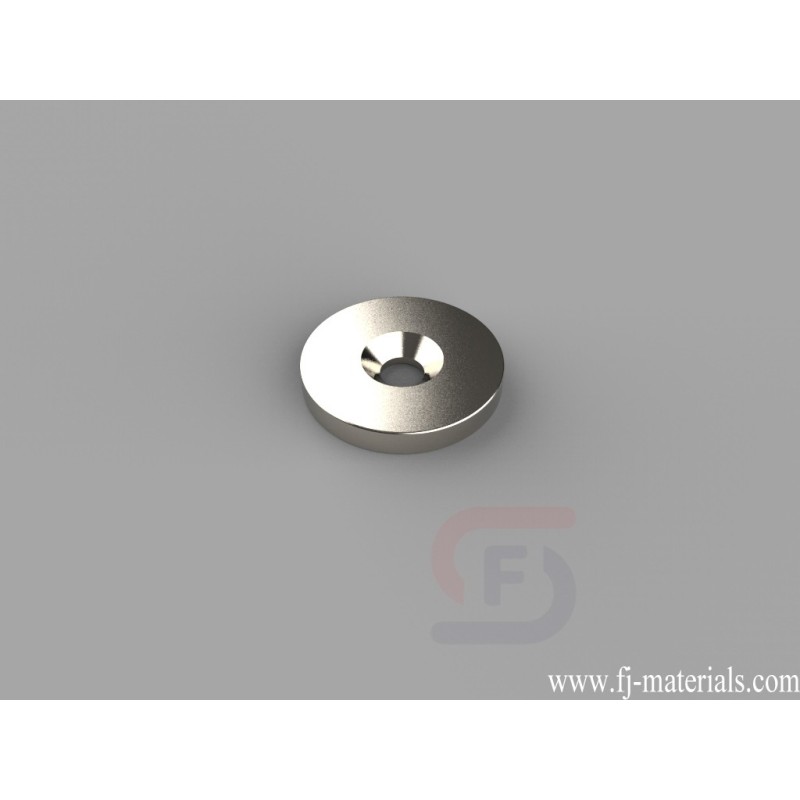

RE22CS-P Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 10.23 lbs.

Yiwu Fenjiao E-commerce Firm supply RE22CS-P Neodymium Ring Magnets with high quality at competitive price.

RE22CS-P Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 10.23 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RE22CS-P

Data sheet

Item Number
RE22CS-P
Material
NdFeB
Grade
N42
Size
7/8" od x 1/8" thick with countersunk hole for No. 8 screw
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.638 oz. (18.1 g)
Pull Force
10.23 lbs
Diameter
F. 19.05-25.4mm
Thickness
A. 0.00-3.18mm
Inner Diameter
A. 0.00-3.18mm
