7/8 od x 1/8 inch thick with countersunk hole for No. 8 screw Ring Magnets | RE22CS-S

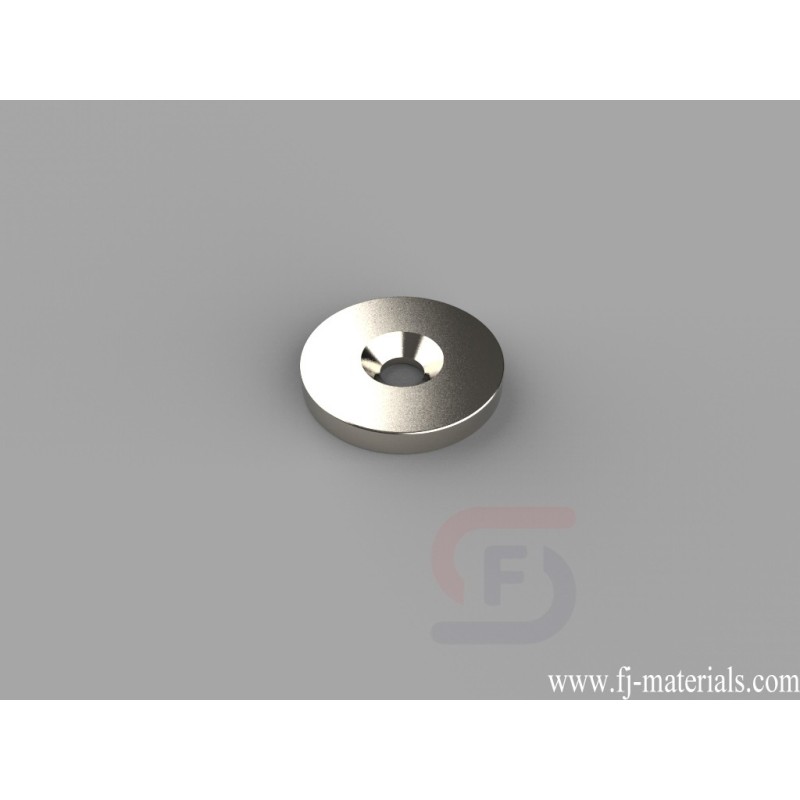

RE22CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 10.23 lbs.
Yiwu Fenjiao E-commerce Firm supply RE22CS-S Neodymium Ring Magnets with high quality at competitive price.
RE22CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 10.23 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RE22CS-S
Data sheet
- Item Number
- RE22CS-S
- Material
- NdFeB
- Grade
- N42
- Size
- 7/8" od x 1/8" thick with countersunk hole for No. 8 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.319 oz. (9.05 g)
- Pull Force
- 10.23 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
RE22CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/8" thick with countersunk hole for #8 screw, Axial magnetized. Pull force is approximately 10.23 lbs.
