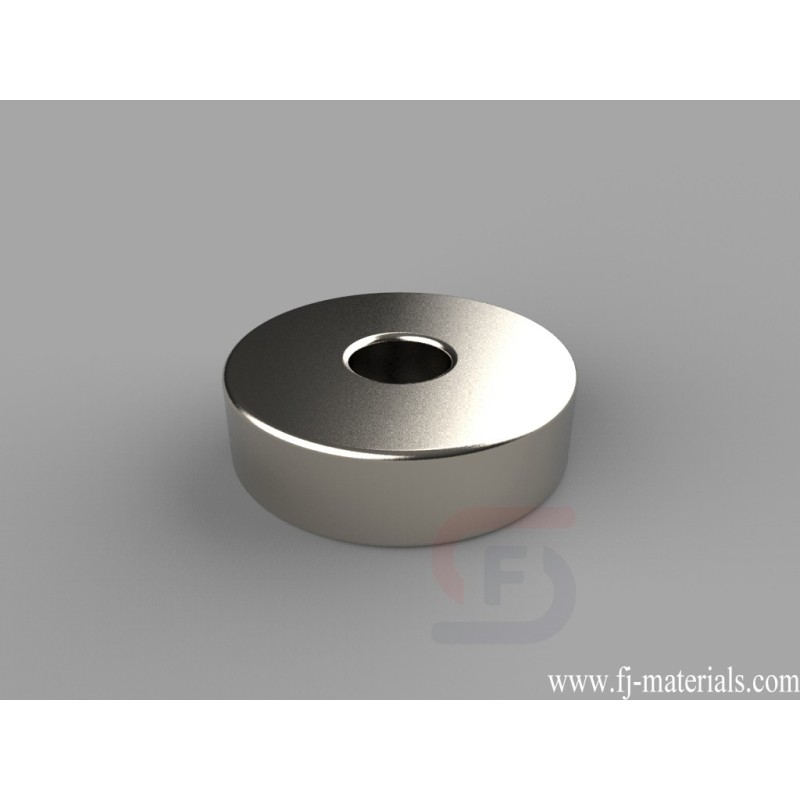

7/8 od x 1/4 id x 1/4 inch thick Ring Magnets | RE44

RE44 Neodymium Magnets, 7/8" od x 1/4" id x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 21.69 lbs.

RE44 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 7/8" od x 1/4" id x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 21.69 lbs. Magnetization direction: Axial (Poles on Flat Ends)

RE44 Neodymium Magnets, 7/8" od x 1/4" id x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 21.69 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RE44

Data sheet

Item Number
RE44
Material
NdFeB
Grade
N42
Size
7/8" od x 1/4" id x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.426 oz. (12.1 g)
Pull Force
21.69 lbs
Diameter
F. 19.05-25.4mm
Thickness
B. 3.18-6.35mm
Inner Diameter
B. 3.18-6.35mm
