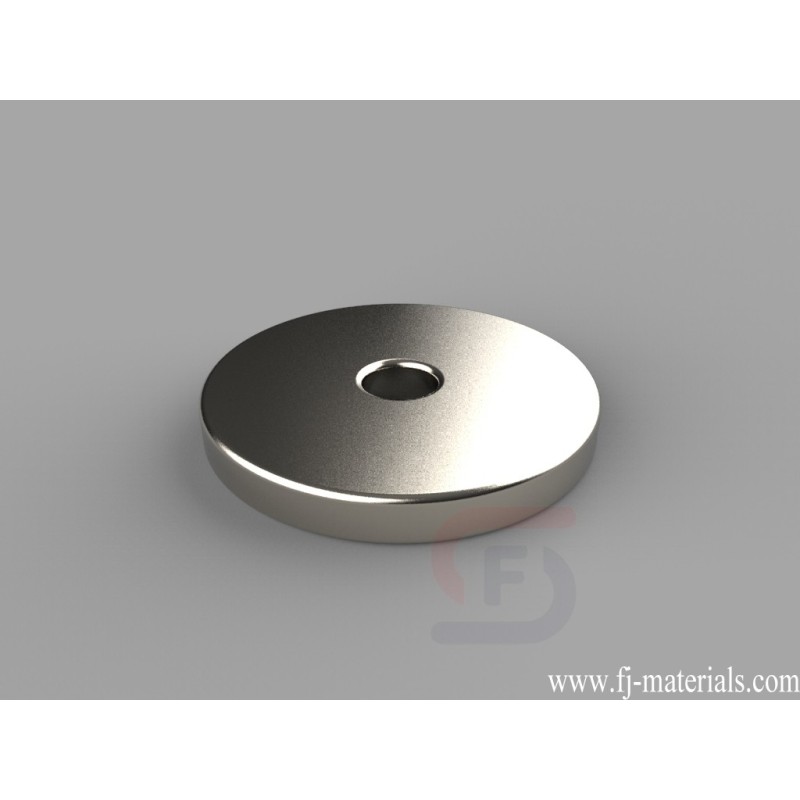

1 od x 3/16 id x 1/8 inch thick Ring Magnets | RX032
RX032 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/16" id x 1/8" thick, Axial magnetized. Pull force is approximately 12.41 lbs.
Yiwu Fenjiao E-commerce Firm supply RX032 Neodymium Ring Magnets with high quality at competitive price.
RX032 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/16" id x 1/8" thick, Axial magnetized. Pull force is approximately 12.41 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX032
Data sheet
- Item Number
- RX032
- Material
- NdFeB
- Grade
- N42
- Size
- 1" od x 3/16" id x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.411 oz. (11.6 g)
- Pull Force
- 12.41 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- B. 3.18-6.35mm
RX032 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/16" id x 1/8" thick, Axial magnetized. Pull force is approximately 12.41 lbs.
