1 od x 3/16 inch thick with countersunk hole for No. 10 screw Ring Magnets | RX033CS-S

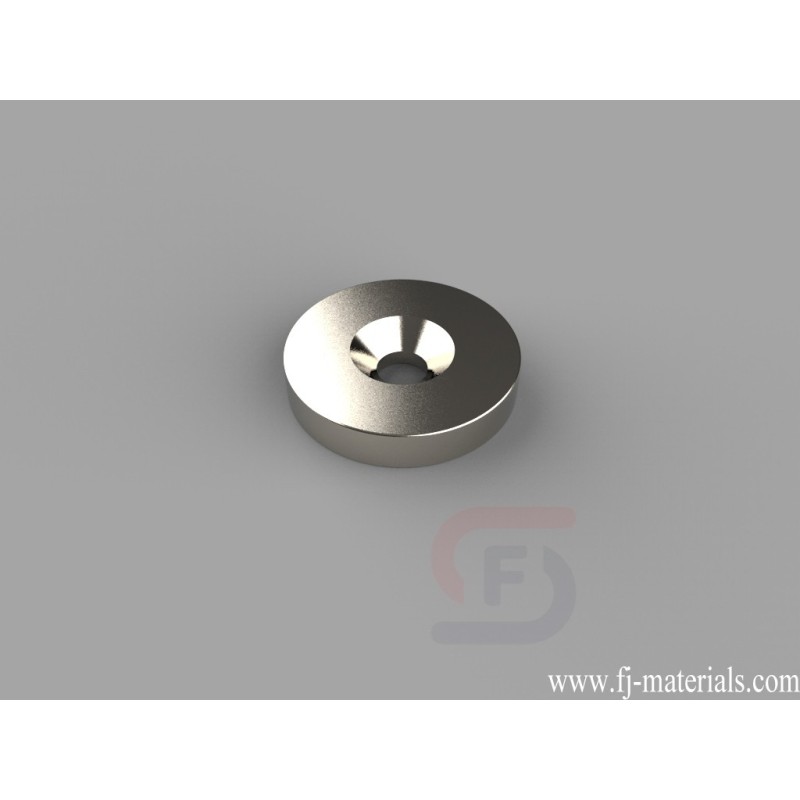

RX033CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/16" thick with countersunk hole for #10 screw, Axial magnetized. Pull force is approximately 20.51 lbs.
Yiwu Fenjiao E-commerce Firm supply RX033CS-S Neodymium Ring Magnets with high quality at competitive price.
RX033CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/16" thick with countersunk hole for #10 screw, Axial magnetized. Pull force is approximately 20.51 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX033CS-S
Data sheet
- Item Number
- RX033CS-S
- Material
- NdFeB
- Grade
- N42
- Size
- 1" od x 3/16" thick with countersunk hole for No. 10 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.590 oz. (16.7 g)
- Pull Force
- 20.51 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- B. 3.18-6.35mm
RX033CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/16" thick with countersunk hole for #10 screw, Axial magnetized. Pull force is approximately 20.51 lbs.
