1 od x 0.195 id x 0.375 id x 1/2 inch thick Ring Magnets | RX038DCB

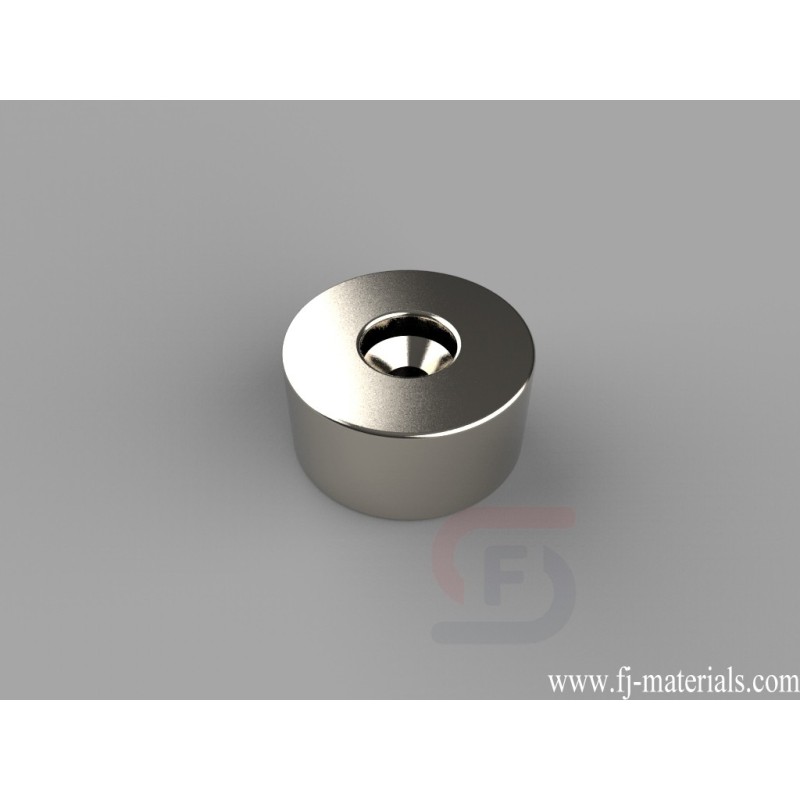

RX038DCB Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 0.195" id x 0.375" id x 1/2" thick, Axial magnetized. Pull force is approximately 39.62 lbs.
Yiwu Fenjiao E-commerce Firm supply RX038DCB Neodymium Ring Magnets with high quality at competitive price.
RX038DCB Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 0.195" id x 0.375" id x 1/2" thick, Axial magnetized. Pull force is approximately 39.62 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX038DCB
Data sheet
- Item Number
- RX038DCB
- Material
- NdFeB
- Grade
- N42
- Size
- 1" od x 0.195" id x 0.375" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.63 oz. (46.3 g)
- Pull Force
- 39.62 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- B. 3.18-6.35mm
RX038DCB Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 0.195" id x 0.375" id x 1/2" thick, Axial magnetized. Pull force is approximately 39.62 lbs.
