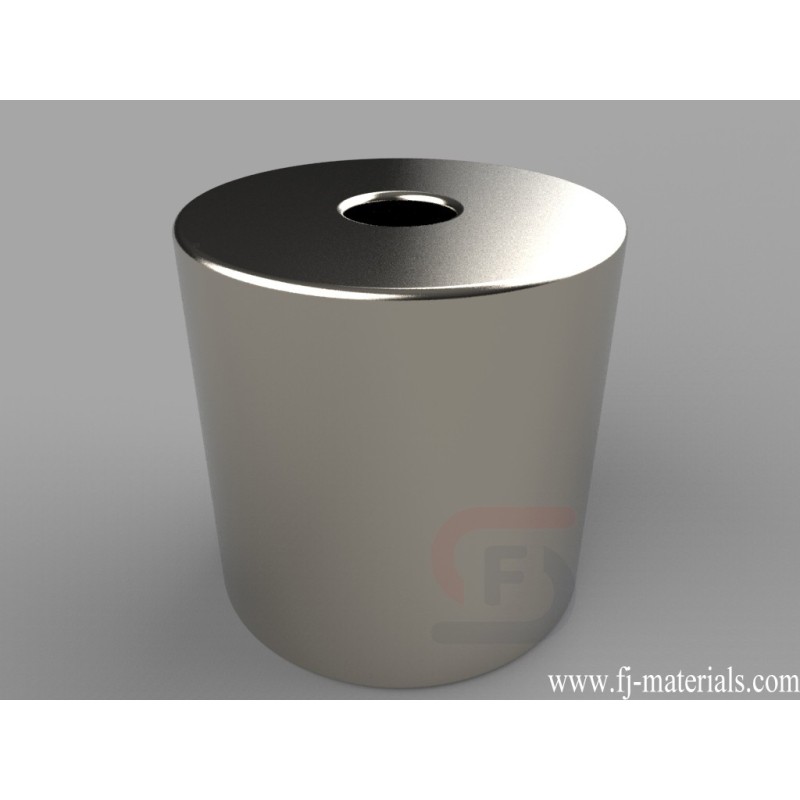

1 od x 1/4 id x 1 inch thick Ring Magnets | RX04X0DIA
RX04X0DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 1/4" id x 1" thick, Diametric magnetized. Pull force is approximately 40.44 lbs.
Yiwu Fenjiao E-commerce Firm supply RX04X0DIA Neodymium Ring Magnets with high quality at competitive price.
RX04X0DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 1/4" id x 1" thick, Diametric magnetized. Pull force is approximately 40.44 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX04X0DIA
Data sheet
- Item Number
- RX04X0DIA
- Material
- NdFeB
- Grade
- N42
- Size
- 1" od x 1/4" id x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Diametric
- Weight
- 3.19 oz. (90.5 g)
- Pull Force
- 40.44 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- F. 19.05-25.4mm
- Inner Diameter
- B. 3.18-6.35mm
RX04X0DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 1/4" id x 1" thick, Diametric magnetized. Pull force is approximately 40.44 lbs.
