1 od x 5/16 id x 1/4 inch thick Ring Magnets | RX054

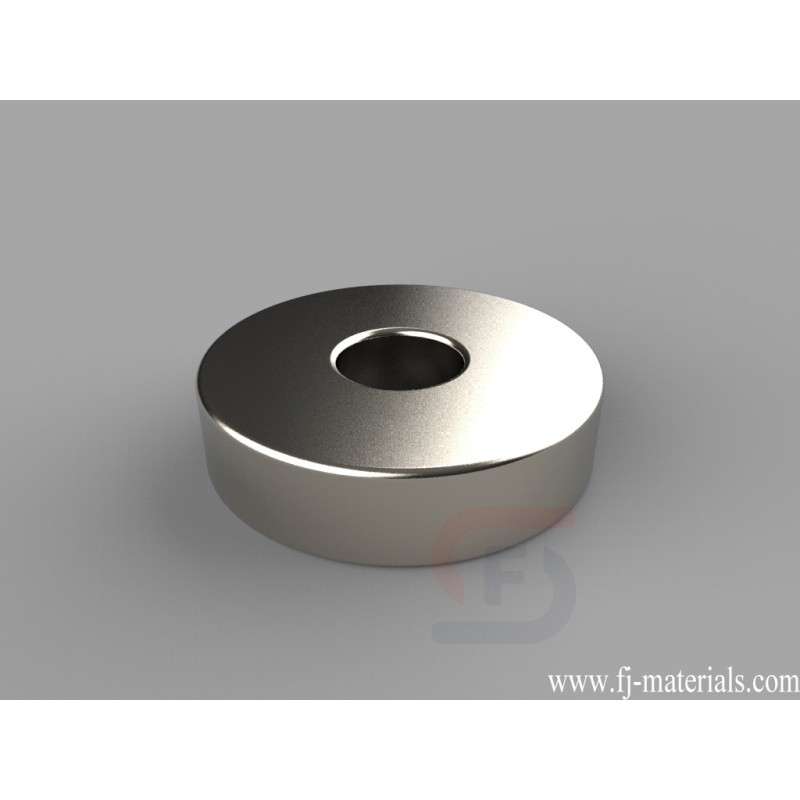

RX054 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 5/16" id x 1/4" thick, Axial magnetized. Pull force is approximately 25.47 lbs.
Yiwu Fenjiao E-commerce Firm supply RX054 Neodymium Ring Magnets with high quality at competitive price.
RX054 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 5/16" id x 1/4" thick, Axial magnetized. Pull force is approximately 25.47 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX054
Data sheet
- Item Number
- RX054
- Material
- NdFeB
- Grade
- N42
- Size
- 1" od x 5/16" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.768 oz. (21.8 g)
- Pull Force
- 25.47 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- C. 6.35-9.53mm
RX054 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 5/16" id x 1/4" thick, Axial magnetized. Pull force is approximately 25.47 lbs.
