1 od x 3/8 id x 1/2 inch thick Ring Magnets | RX068

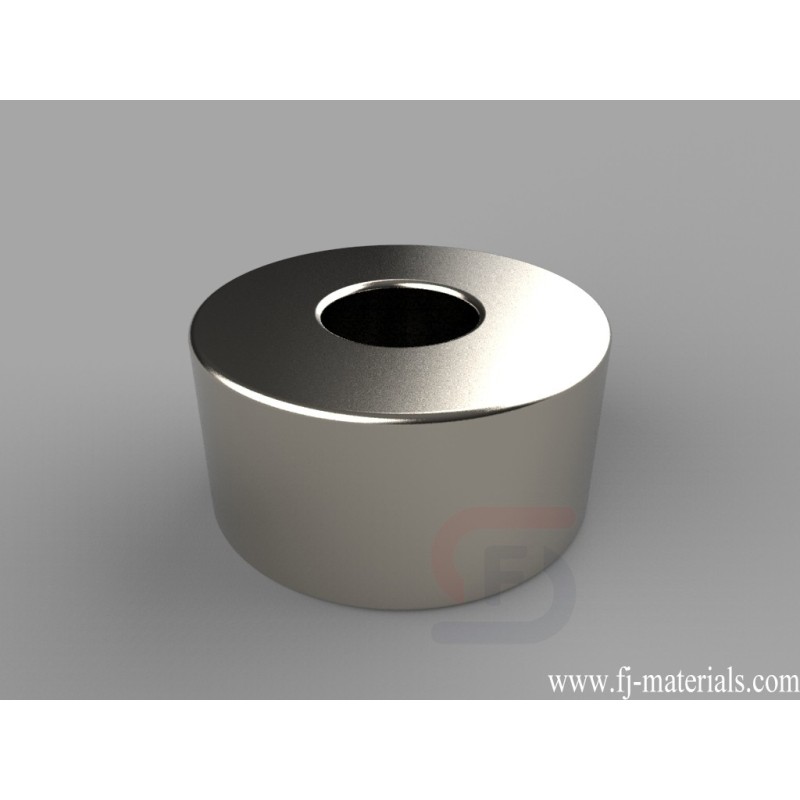

RX068 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 39.62 lbs.
Yiwu Fenjiao E-commerce Firm supply RX068 Neodymium Ring Magnets with high quality at competitive price.
RX068 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 39.62 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX068
Data sheet
- Item Number
- RX068
- Material
- NdFeB
- Grade
- N42
- Size
- 1" od x 3/8" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.46 oz. (41.48 g)
- Pull Force
- 39.62 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- C. 6.35-9.53mm
RX068 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 3/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 39.62 lbs.
