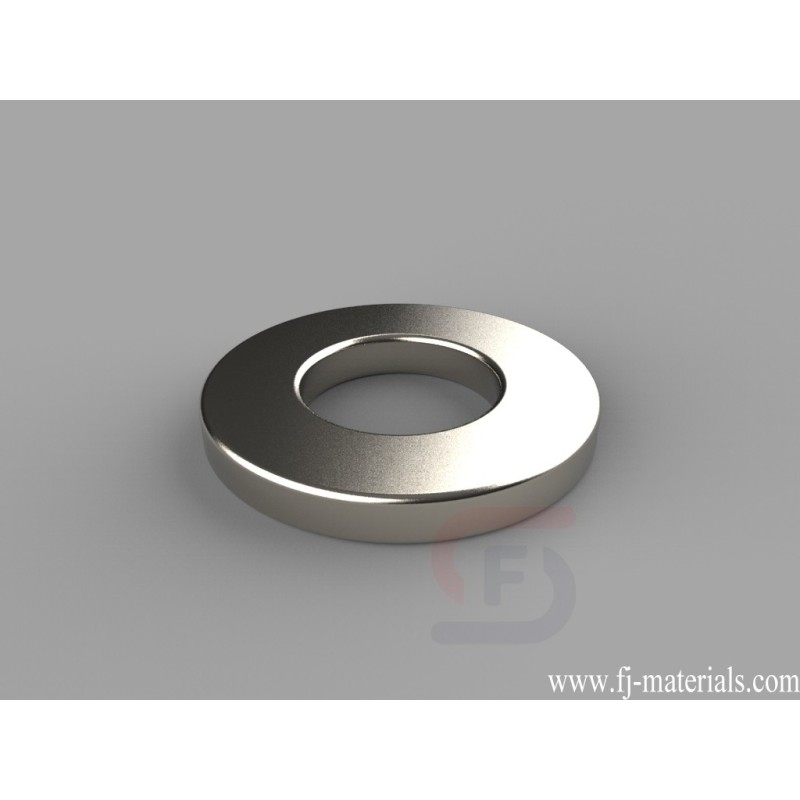

1 od x 1/2 id x 1/8 inch thick Ring Magnets | RX082

RX082 Neodymium Magnets, 1" od x 1/2" id x 1/8" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 1/2" id x 1/8" thick, Axial magnetized. Pull force is approximately 11.17 lbs.

RX082 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1" od x 1/2" id x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 11.17 lbs. Magnetization direction: Axial (Poles on Flat Ends)

RX082 Neodymium Magnets, 1" od x 1/2" id x 1/8" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" od x 1/2" id x 1/8" thick, Axial magnetized. Pull force is approximately 11.17 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RX082

Data sheet

Item Number
RX082
Material
NdFeB
Grade
N42
Size
1" od x 1/2" id x 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.32 oz. (9.1 g)
Pull Force
11.17 lbs
Diameter
F. 19.05-25.4mm
Thickness
A. 0.00-3.18mm
Inner Diameter
D. 9.53-12.7mm
