1 1/4 od x 1/8 id x 1/4 inch thick Ring Magnets | RX424

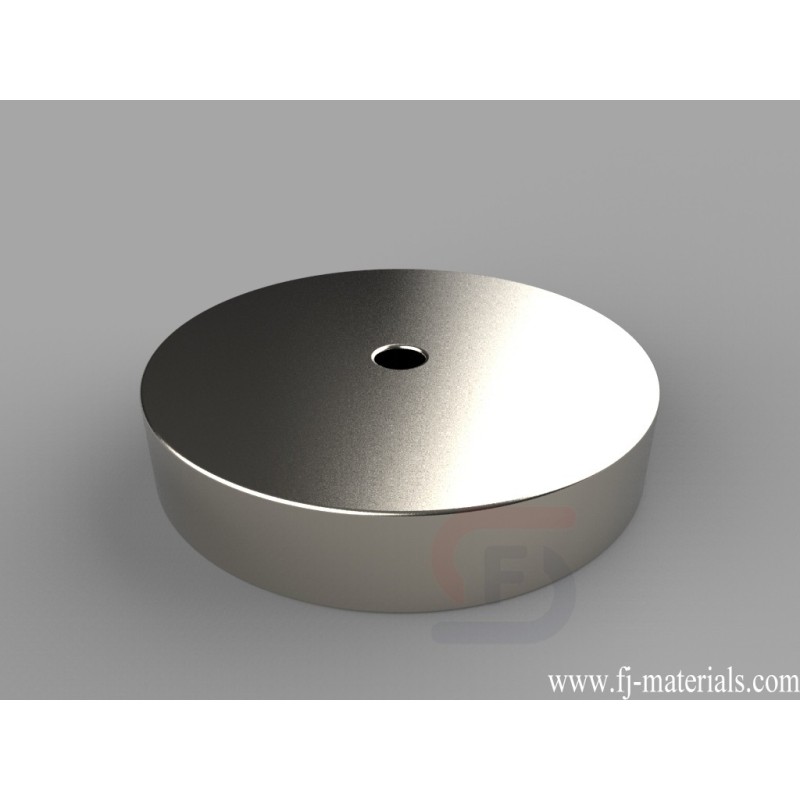

RX424 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/4" od x 1/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 30.76 lbs.
Yiwu Fenjiao E-commerce Firm supply RX424 Neodymium Ring Magnets with high quality at competitive price.
RX424 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/4" od x 1/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 30.76 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX424
Data sheet
- Item Number
- RX424
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/4" od x 1/8" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.32 oz. (37.3 g)
- Pull Force
- 30.76 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- A. 0.00-3.18mm
RX424 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/4" od x 1/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 30.76 lbs.
