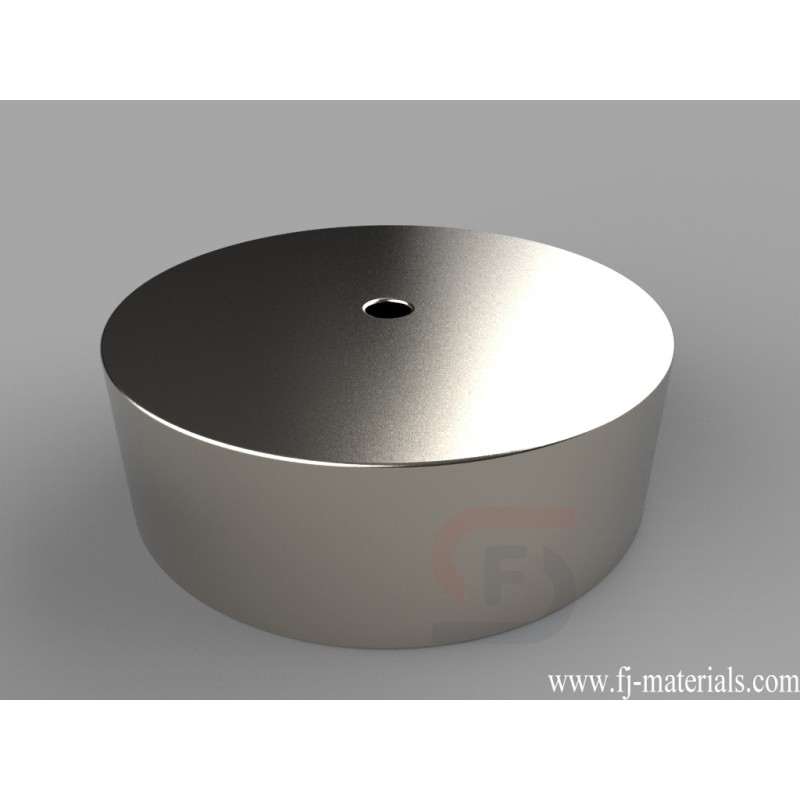

1 1/2 od x 1/8 id x 1/2 inch thick Ring Magnets | RX828
RX828 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 1/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 71.98 lbs.
Yiwu Fenjiao E-commerce Firm supply RX828 Neodymium Ring Magnets with high quality at competitive price.
RX828 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 1/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 71.98 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX828
Data sheet
- Item Number
- RX828
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" od x 1/8" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.80 oz. (107.9 g)
- Pull Force
- 71.98 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- A. 0.00-3.18mm
RX828 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 1/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 71.98 lbs.
