1 1/2 od x 1/4 id x 1 1/2 inch thick Ring Magnets | RX84X8DIA

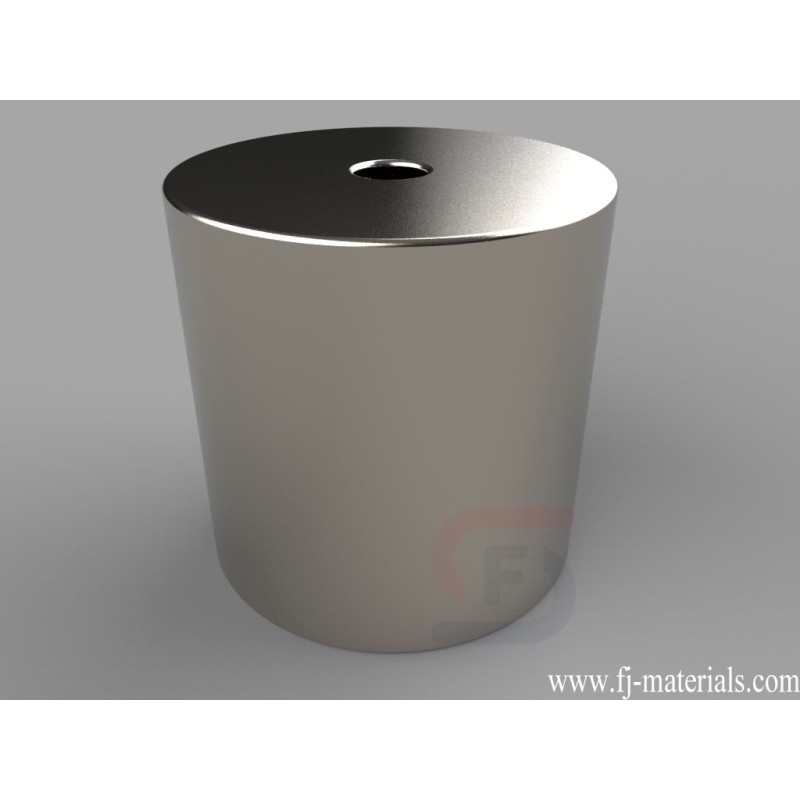

RX84X8DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 1/4" id x 1 1/2" thick, Diametric magnetized. Pull force is approximately 72.93 lbs.
Yiwu Fenjiao E-commerce Firm supply RX84X8DIA Neodymium Ring Magnets with high quality at competitive price.
RX84X8DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 1/4" id x 1 1/2" thick, Diametric magnetized. Pull force is approximately 72.93 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX84X8DIA
Data sheet
- Item Number
- RX84X8DIA
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" od x 1/4" id x 1 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Diametric
- Weight
- 11.17 oz. (316.7 g)
- Pull Force
- 72.93 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- G. 25.4-50.8mm
- Inner Diameter
- B. 3.18-6.35mm
RX84X8DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 1/4" id x 1 1/2" thick, Diametric magnetized. Pull force is approximately 72.93 lbs.
