1 1/2 od x 3/8 id x 1/4 inch thick Ring Magnets | RX864

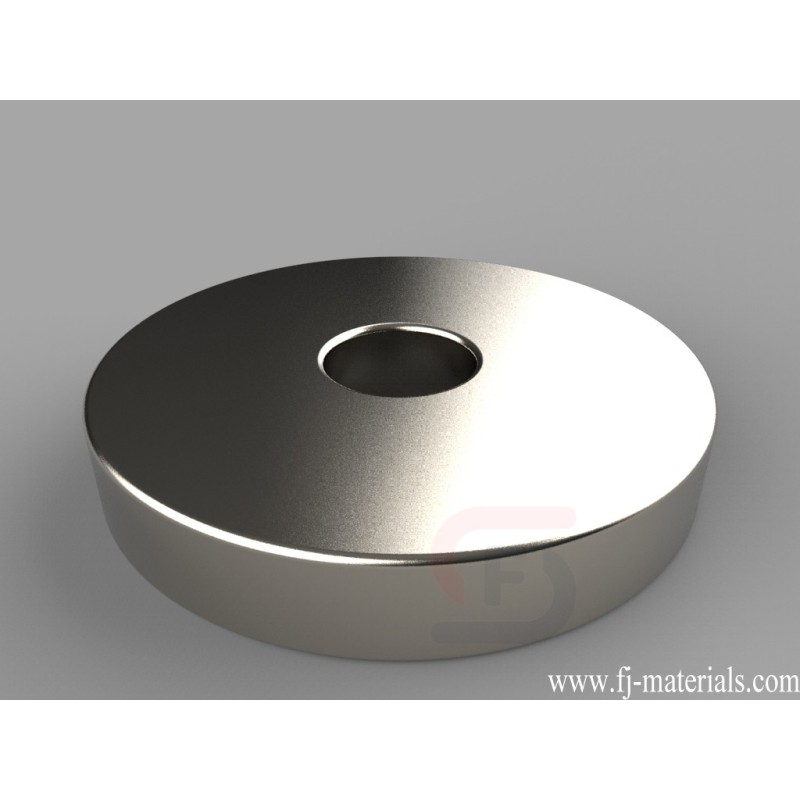

RX864 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 3/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 33.43 lbs.
Yiwu Fenjiao E-commerce Firm supply RX864 Neodymium Ring Magnets with high quality at competitive price.
RX864 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 3/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 33.43 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX864
Data sheet
- Item Number
- RX864
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" od x 3/8" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.80 oz. (50.9 g)
- Pull Force
- 33.43 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- C. 6.35-9.53mm
RX864 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" od x 3/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 33.43 lbs.
