1 3/4 od x 1/2 id x 1/2 inch thick Ring Magnets | RXC88

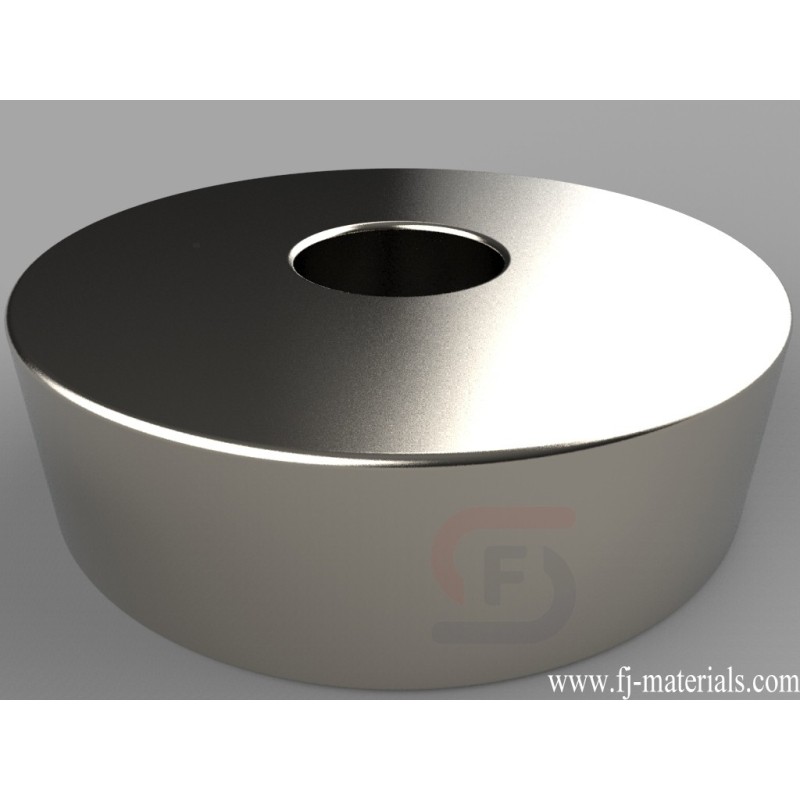

RXC88 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" od x 1/2" id x 1/2" thick, Axial magnetized. Pull force is approximately 81.56 lbs.
Yiwu Fenjiao E-commerce Firm supply RXC88 Neodymium Ring Magnets with high quality at competitive price.
RXC88 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" od x 1/2" id x 1/2" thick, Axial magnetized. Pull force is approximately 81.56 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RXC88
Data sheet
- Item Number
- RXC88
- Material
- NdFeB
- Grade
- N42
- Size
- 1 3/4" od x 1/2" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 4.79 oz. (136 g)
- Pull Force
- 81.56 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- D. 9.53-12.7mm
RXC88 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" od x 1/2" id x 1/2" thick, Axial magnetized. Pull force is approximately 81.56 lbs.
