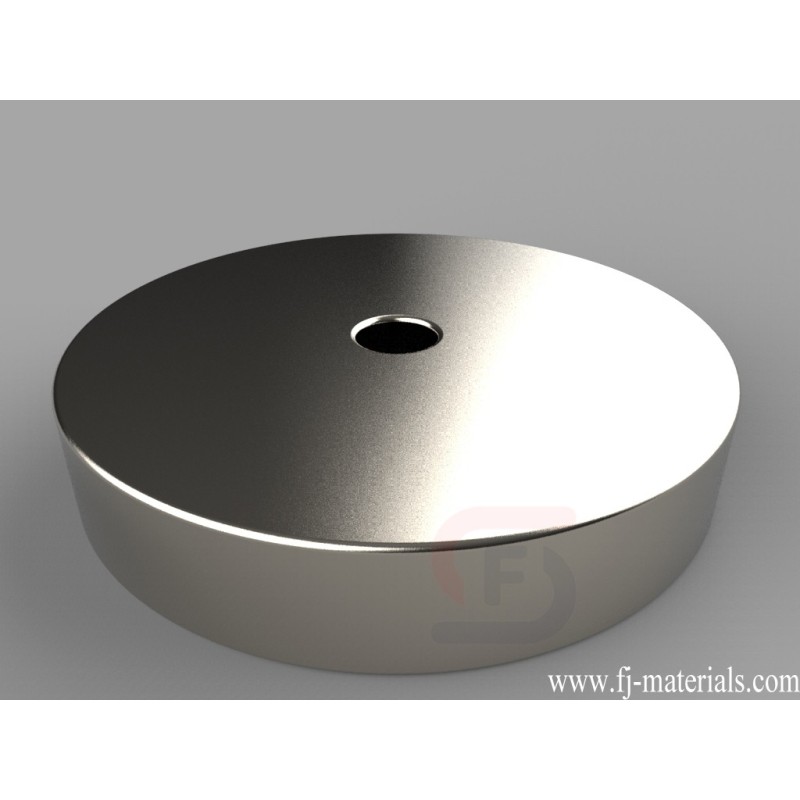

2 od x 1/4 id x 3/8 inch thick Ring Magnets | RY046

RY046 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 3/8" thick, Axial magnetized. Pull force is approximately 77.34 lbs.

Yiwu Fenjiao E-commerce Firm supply RY046 Neodymium Ring Magnets with high quality at competitive price.

RY046 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 3/8" thick, Axial magnetized. Pull force is approximately 77.34 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RY046

Data sheet

Item Number
RY046
Material
NdFeB
Grade
N42
Size
2" od x 1/4" id x 3/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
5.03 oz. (143 g)
Pull Force
77.34 lbs
Diameter
G. 25.4-50.8mm
Thickness
C. 6.35-9.53mm
Inner Diameter
B. 3.18-6.35mm
