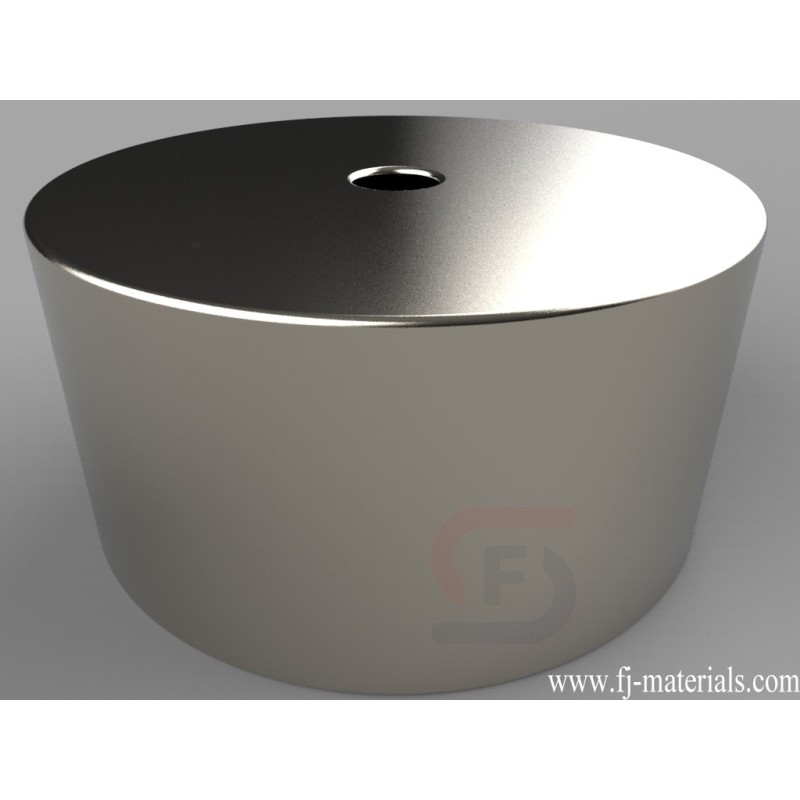

2 od x 1/4 id x 1 inch thick Ring Magnets | RY04X0
RY04X0 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 1" thick, Axial magnetized. Pull force is approximately 205.3 lbs.
Yiwu Fenjiao E-commerce Firm supply RY04X0 Neodymium Ring Magnets with high quality at competitive price.
RY04X0 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 1" thick, Axial magnetized. Pull force is approximately 205.3 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RY04X0
Data sheet
- Item Number
- RY04X0
- Material
- NdFeB
- Grade
- N42
- Size
- 2" od x 1/4" id x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 13.4 oz. (380 g)
- Pull Force
- 205.3 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- F. 19.05-25.4mm
- Inner Diameter
- B. 3.18-6.35mm
RY04X0 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 1" thick, Axial magnetized. Pull force is approximately 205.3 lbs.
