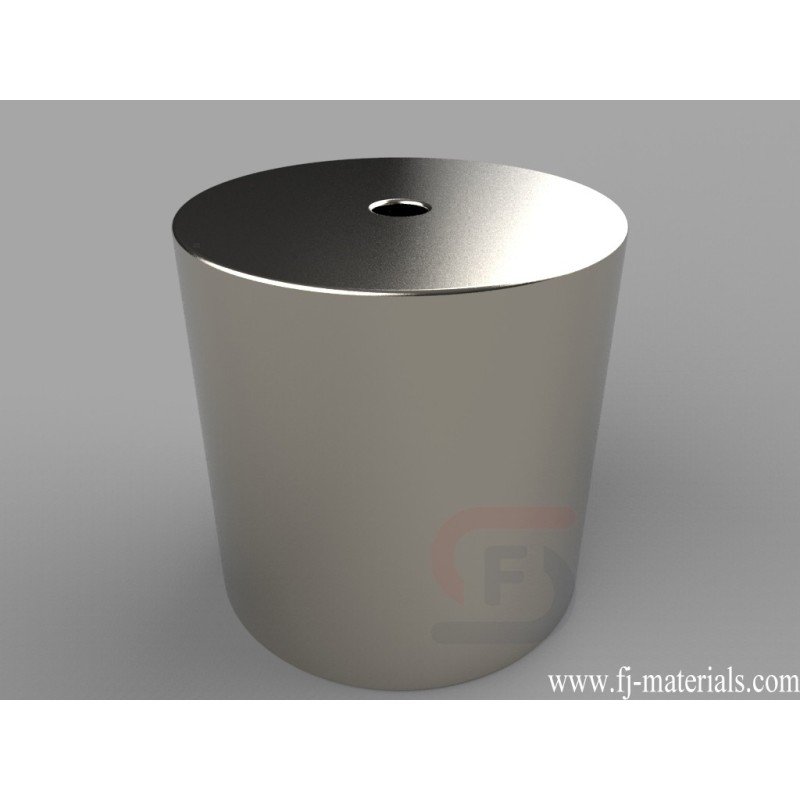

2 od x 1/4 id x 2 inch thick Ring Magnets | RY04Y0DIA

RY04Y0DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 2" thick, Diametric magnetized. Pull force is approximately 133.7 lbs.

Yiwu Fenjiao E-commerce Firm supply RY04Y0DIA Neodymium Ring Magnets with high quality at competitive price.

RY04Y0DIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/4" id x 2" thick, Diametric magnetized. Pull force is approximately 133.7 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RY04Y0DIA

Data sheet

Item Number
RY04Y0DIA
Material
NdFeB
Grade
N42
Size
2" od x 1/4" id x 2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Diametric
Weight
26.84 oz. (760.9 g)
Pull Force
133.7 lbs
Diameter
G. 25.4-50.8mm
Thickness
G. 25.4-50.8mm
Inner Diameter
B. 3.18-6.35mm
