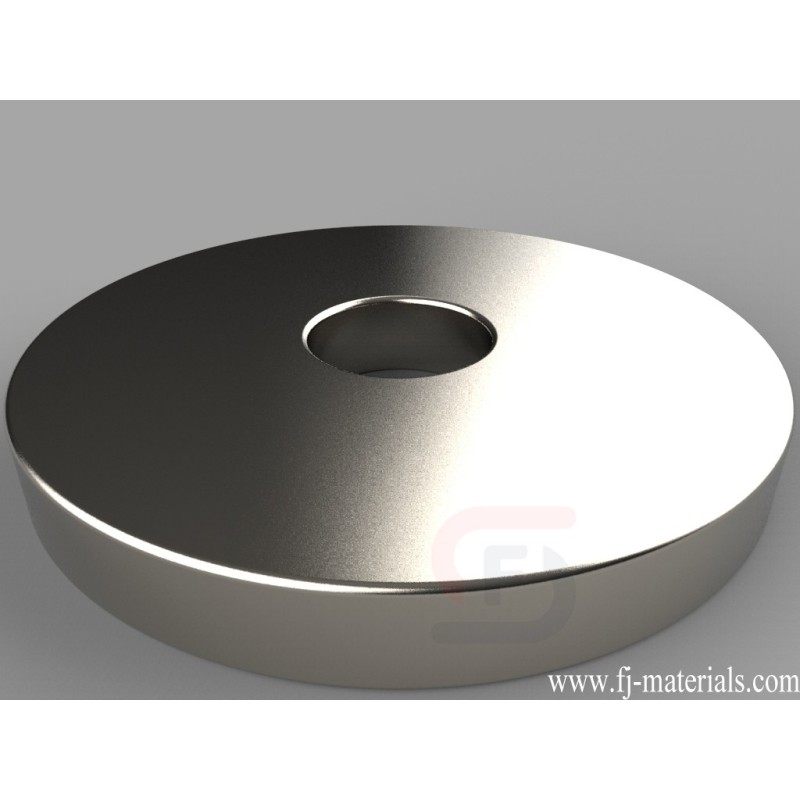

2 od x 1/2 id x 1/4 inch thick Ring Magnets | RY084
RY084 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 43.40 lbs.
Yiwu Fenjiao E-commerce Firm supply RY084 Neodymium Ring Magnets with high quality at competitive price.
RY084 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 43.40 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RY084
Data sheet
- Item Number
- RY084
- Material
- NdFeB
- Grade
- N42
- Size
- 2" od x 1/2" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.19 oz. (90.5 g)
- Pull Force
- 43.40 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- D. 9.53-12.7mm
RY084 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 43.40 lbs.
