2 od x 1 id x 1/4 inch thick Ring Magnets | RY0X04

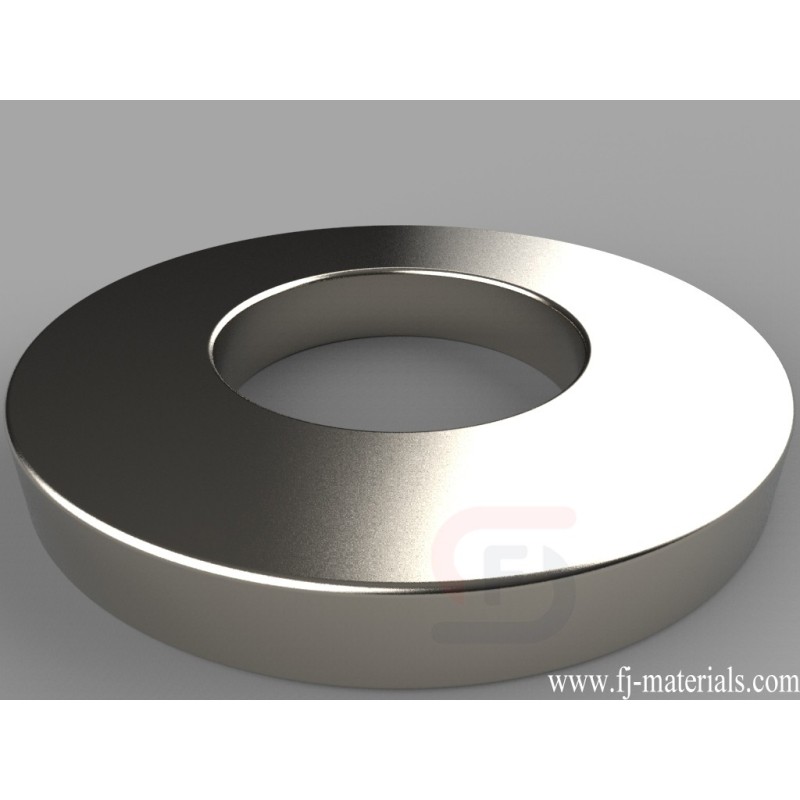

RY0X04 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1" id x 1/4" thick, Axial magnetized. Pull force is approximately 39.61 lbs.
Yiwu Fenjiao E-commerce Firm supply RY0X04 Neodymium Ring Magnets with high quality at competitive price.
RY0X04 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1" id x 1/4" thick, Axial magnetized. Pull force is approximately 39.61 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RY0X04
Data sheet
- Item Number
- RY0X04
- Material
- NdFeB
- Grade
- N42
- Size
- 2" od x 1" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.55 oz. (72.4 g)
- Pull Force
- 39.61 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- F. 19.05-25.4mm
RY0X04 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" od x 1" id x 1/4" thick, Axial magnetized. Pull force is approximately 39.61 lbs.
