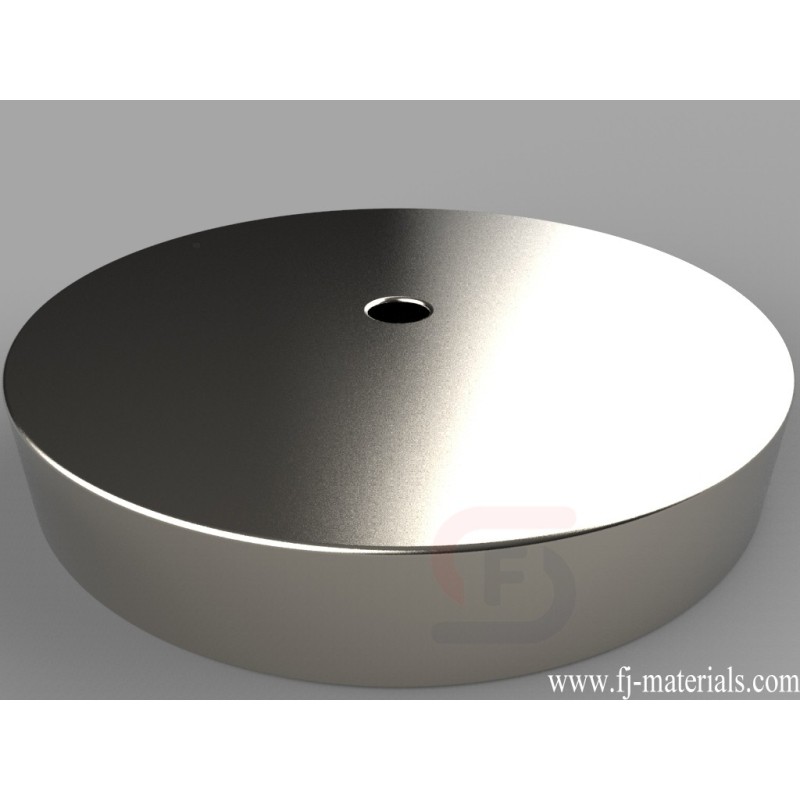

3 od x 1/4 id x 1/2 inch thick Ring Magnets | RZ048
RZ048 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" od x 1/4" id x 1/2" thick, Axial magnetized. Pull force is approximately 148.4 lbs.
Yiwu Fenjiao E-commerce Firm supply RZ048 Neodymium Ring Magnets with high quality at competitive price.
RZ048 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" od x 1/4" id x 1/2" thick, Axial magnetized. Pull force is approximately 148.4 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RZ048
Data sheet
- Item Number
- RZ048
- Material
- NdFeB
- Grade
- N42
- Size
- 3" od x 1/4" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 15.2 oz. (431 g)
- Pull Force
- 148.4 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- B. 3.18-6.35mm
RZ048 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" od x 1/4" id x 1/2" thick, Axial magnetized. Pull force is approximately 148.4 lbs.
