3 od x 1 1/2 id x 1/4 inch thick Ring Magnets | RZ0X84

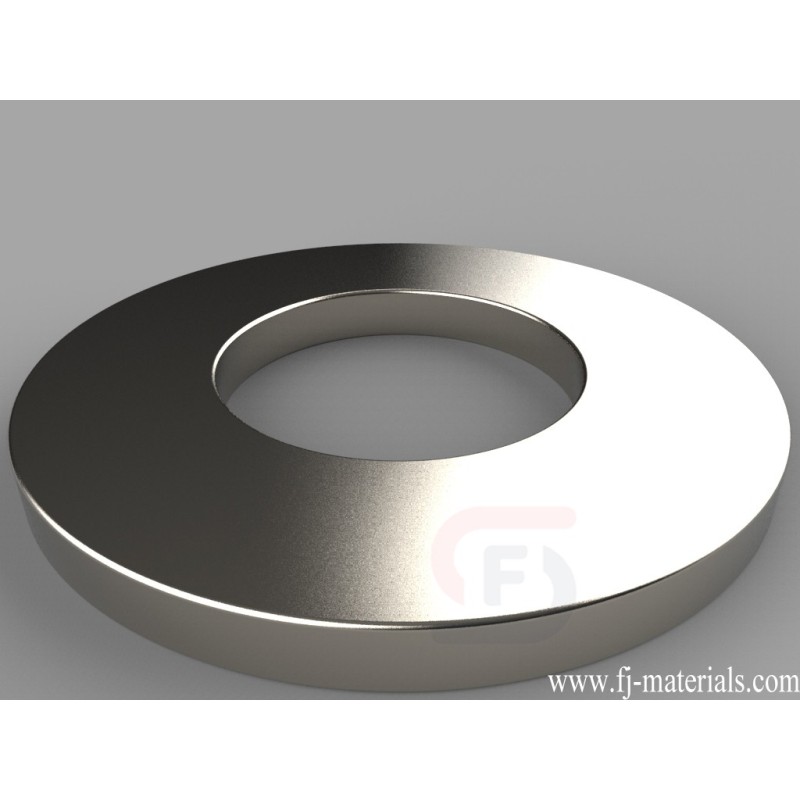

RZ0X84 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" od x 1 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 56.72 lbs.

Yiwu Fenjiao E-commerce Firm supply RZ0X84 Neodymium Ring Magnets with high quality at competitive price.

RZ0X84 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" od x 1 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 56.72 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RZ0X84

Data sheet

Item Number
RZ0X84
Material
NdFeB
Grade
N42
Size
3" od x 1 1/2" id x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
5.75 oz. (163 g)
Pull Force
56.72 lbs
Diameter
H. 50.8-254mm
Thickness
B. 3.18-6.35mm
Inner Diameter
G. 25.4-50.8mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
