RX054TP-N52
search
  • RX054TP-N52

1 od x 5/16 id x 1/4 inch thick Plastic Coated Magnets | RX054TP-N52

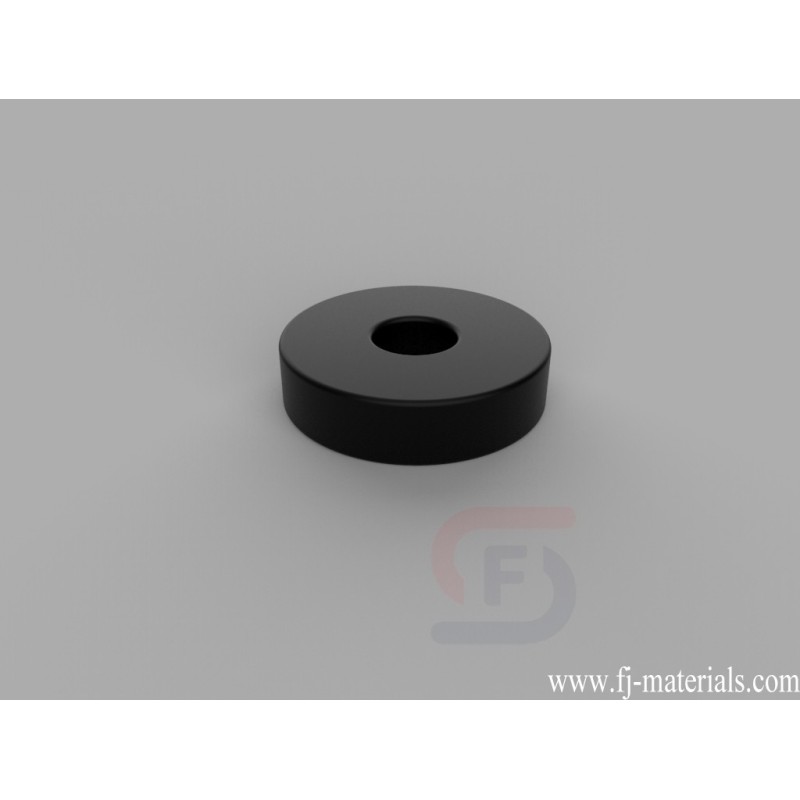

RX054TP-N52 Plastic Coated Neodymium Magnets is made of Grade N52 NdFeB, Plastic Coated. The dimension is 1" od x 5/16" id x 1/4" thick, Axial magnetized. Pull force is approximately 11.12 lbs.

Yiwu Fenjiao E-commerce Firm supply RX054TP-N52 Plastic/Rubber Coated with high quality at competitive price.

RX054TP-N52 Plastic Coated Neodymium Magnets is made of Grade N52 NdFeB, Plastic Coated. The dimension is 1" od x 5/16" id x 1/4" thick, Axial magnetized. Pull force is approximately 11.12 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RX054TP-N52

Data sheet

Item Number
RX054TP-N52
Material
NdFeB
Grade
N52
Size
1" od x 5/16" id x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Plastic Coated
Magnetization Direction
Axial
Weight
0.485 oz. (13.8 g)
Pull Force
11.12 lbs
Diameter
F. 19.05-25.4mm
Thickness
B. 3.18-6.35mm
Inner Diameter
C. 6.35-9.53mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
