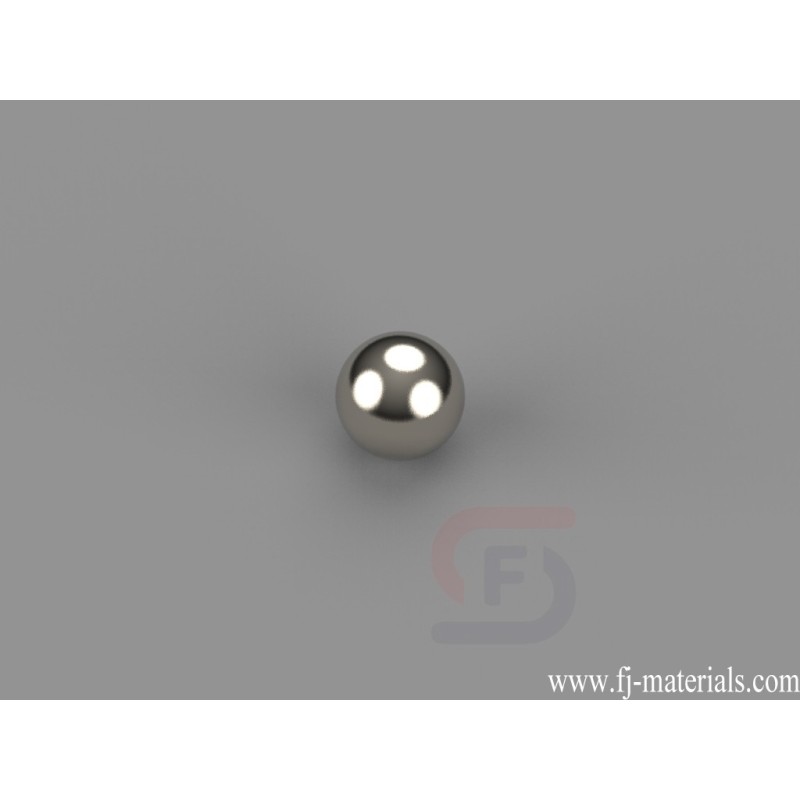

3/8 inch diameter Sphere Magnets | S6

S6 Neodymium Magnets, 3/8" diameter is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" diameter, Axial magnetized. Pull force is approximately 3.69 lbs.

S6 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 3/8" diameter, Ni-Cu-Ni (Nickel) coating. Pull force: 3.69 lbs. Magnetization direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)

S6 Neodymium Magnets, 3/8" diameter is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" diameter, Axial magnetized. Pull force is approximately 3.69 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

S6

Data sheet

Item Number
S6
Material
NdFeB
Grade
N42
Size
3/8" diameter
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.12 oz. (3.39 g)
Pull Force
3.69 lbs
Diameter
C. 6.35-9.53mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
